lamaPLC: Communication with B+G E-Tech DS100 Serie Modbus
 |  |  |
Technical data

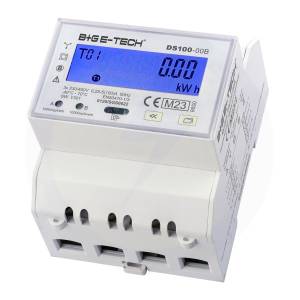

- Type designation: DS100-009 (Article no. 1042204-M23)
- MID certified according to certificate 0120/SGS0622 from SGS UK
- 0.25-5A nominal current / 100A limit current (limit current = can be continuously loaded!)
- Electronic electricity meter (3-phase current according to EN 61036, for 4-wire three-phase networks) 3p4w
- digital LCD (backlit)
- 6 digital digits + 2 decimal places = 999999.99 kWh
- Connection: 3x230V/400V AC
- Operating range: 3*161/279 to 300/500 / 0.1 ~ 100A
- Frequency range: 50Hz +/- 10%
- Start current Cos-Phi = 1: 0.4% of Ib
- Self-consumption: ≤ 1W /12VA per phase
- Accuracy class: 1
- Pulse length: 80ms
- LED counting pulses: 1000imp/kWh
- Temp. range: -25°C to +55°C
- Rel. humidity: up to 75% - briefly up to 95%
- Mounting: DIN rail (DIN EN50022) / 4TE=71.5mm

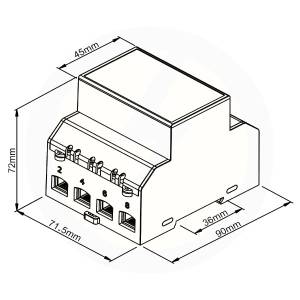

- Dimensions: 71.5x90x72mm
- Weight: approx. 350g
- Approved for billing purposes to third parties
Modbus map
| Address | Measuring | Var.type | Unit/resolution | Note |
|---|---|---|---|---|
| 31024 | Phase 1 to neutral volts | int32 | mV | |
| 31026 | Phase 2 to neutral volts | int32 | mV | |
| 31028 | Phase 3 to neutral volts | int32 | mV | |
| 31030 | Phase L1 - L2 volts | int32 | mV | |
| 31032 | Phase L2 - L3 volts | int32 | mV | |
| 31034 | Phase L3 - L1 volts | int32 | mV | |
| 31036 | Average line to neutral volts | int32 | mV | |
| 31038 | Average line to line volts | int32 | mV | |
| 31040 | Phase 1 current | int32 | mA | |
| 31042 | Phase 2 current | int32 | mA | |
| 31044 | Phase 3 current | int32 | mA | |
| 31046 | Neutral current | int32 | mA | |
| 31048 | Three-phase vector current | int32 | mA | |
| 31050 | Phase 1 active power | int32 | W | |
| 31052 | Phase 2 active power | int32 | W | |
| 31054 | Phase 3 active power | int32 | W | |
| 31056 | Total active power | int32 | W | |
| 31058 | Phase 1 apparent power | int32 | VA | |
| 31060 | Phase 2 apparent power | int32 | VA | |
| 31062 | Phase 3 apparent power | int32 | VA | |
| 31064 | Total apparent power | int32 | VA | |
| 31066 | Phase 1 reactive power | int32 | var | |
| 31068 | Phase 2 reactive power | int32 | var | |
| 31070 | Phase 3 reactive power | int32 | var | |
| 31072 | Total reactive power | int32 | var | |
| 31074 | Phase 1 frequency | int16 | Hz/10 | |
| 31075 | Phase 2 frequency | int16 | Hz/10 | |
| 31076 | Phase 3 frequency | int16 | Hz/10 | |
| 31077 | Combinated frequency | int16 | Hz/10 | |
| 31078 | Phase 1 power factor | int16 | 0.1 | |
| 31079 | Phase 2 power factor | int16 | 0.1 | |
| 31080 | Phase 3 power factor | int16 | 0.1 | |
| 31081 | Total power factor | int16 | 0.1 | |
| 31082 | Phase 1 active power forward | int32 | W/10 | |
| 31084 | Phase 2 active power forward | int32 | W/10 | |
| 31086 | Phase 3 active power forward | int32 | W/10 | |
| 31088 | Total active power forward | int32 | W/10 | |
| 31090 | Phase 1 active power reverse | int32 | W/10 | |
| 31092 | Phase 2 active power reverse | int32 | W/10 | |
| 31094 | Phase 3 active power reverse | int32 | W/10 | |
| 31096 | Total active power reverse | int32 | W/10 | |
| 31098 | Phase 1 active power demand | int32 | W/10 | |
| 31100 | Phase 2 active power demand | int32 | W/10 | |
| 31102 | Phase 3 active power demand | int32 | W/10 | |
| 31104 | Total active power demand | int32 | W/10 | |
| 31082 | Phase 1 reactive power forward | int32 | var/10 | |
| 31084 | Phase 2 reactive power forward | int32 | var/10 | |
| 31086 | Phase 3 reactive power forward | int32 | var/10 | |
| 31088 | Total reactive power forward | int32 | var/10 | |
| 31090 | Phase 1 reactive power reverse | int32 | var/10 | |
| 31092 | Phase 2 reactive power reverse | int32 | var/10 | |
| 31094 | Phase 3 reactive power reverse | int32 | var/10 | |
| 31096 | Total reactive power reverse | int32 | var/10 | |
| 31098 | Phase 1 reactive power demand | int32 | var/10 | |
| 31100 | Phase 2 reactive power demand | int32 | var/10 | |
| 31102 | Phase 3 reactive power demand | int32 | var/10 | |
| 31104 | Total reactive power demand | int32 | var/10 | |
| 40270 | Total active energy forward | int32 | kWh/100 | |
| 40280 | Total active energy reverse | int32 | kWh/100 | |
| 40290 | Total active energy | int32 | kWh/100 | |
| 40300 | Total reactive energy forward | int32 | kvarh/100 | |
| 40310 | Total reactive energy reverse | int32 | kvarh/100 | |
| 40320 | Total reactive energy | int32 | kvarh/100 | |
| 41280 | Phase 1 active energy | int32 | kWh/100 | |
| 41290 | Phase 1 active energy forward | int32 | kWh/100 | |
| 41300 | Phase 1 active energy reverse | int32 | kWh/100 | |
| 41310 | Phase 1 reactive energy forward | int32 | kvarh/100 | |
| 41320 | Phase 1 reactive energy reverse | int32 | kvarh/100 | |
| 41330 | Phase 1 reactive energy | int32 | kvarh/100 | |
| 41380 | Phase 2 active energy | int32 | kWh/100 | |
| 41390 | Phase 2 active energy forward | int32 | kWh/100 | |
| 41400 | Phase 2 active energy reverse | int32 | kWh/100 | |
| 41410 | Phase 2 reactive energy forward | int32 | kvarh/100 | |
| 41420 | Phase 2 reactive energy reverse | int32 | kvarh/100 | |
| 41430 | Phase 2 reactive energy | int32 | kvarh/100 | |
| 41480 | Phase 2 active energy | int32 | kWh/100 | |
| 41490 | Phase 2 active energy forward | int32 | kWh/100 | |
| 41500 | Phase 2 active energy reverse | int32 | kWh/100 | |
| 41510 | Phase 2 reactive energy forward | int32 | kvarh/100 | |
| 41520 | Phase 2 reactive energy reverse | int32 | kvarh/100 | |
| 41530 | Phase 2 reactive energy | int32 | kvarh/100 | |
