Counters - similar to IEC times - can be called in two ways, embedded or with a separate DB. I don't feel like describing this separately, please take a look at the times: IEC Timers.

>> Back to LamaPLC main menu (SCL commands)

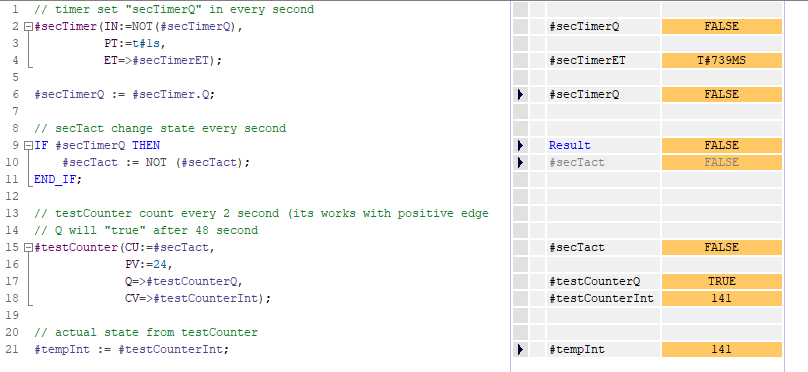

The function that only counts upwards.

The CTU counts the positive edges of the “CU:” parameter. As soon as it reaches the value of “PV” with the calculation, the output “Q” changes to “TRUE”. The function continues to count. The function can be restarted with the “R” input.

CTU types:

• CTU_SINT / CTU_USINT: the calculation goes with the variable types SINT, USINT
• CTU_INT / CTU_UINT: the calculation goes with the variable types INT, UINT
• CTU_DINT / CTU_UDINT: the calculation goes with the variable types DINT, UDINT
• CTU_LINT / CTU_ULINT: the calculation goes with the variable types LINT, ULINT (only on S7-1500 PLC)

>> Back to LamaPLC main menu (SCL commands)

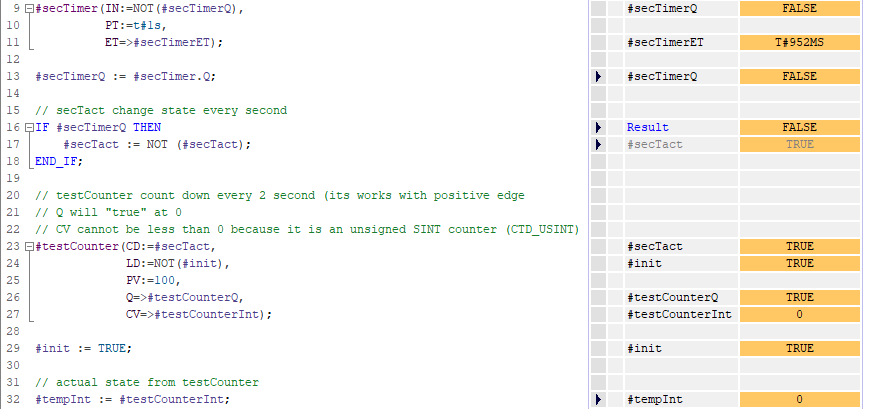

The function that only counts downwards.

The CTD counts the positive edges of the “CD” parameter, the current counter value of the CV parameter is decremented by one. The function can be restarted with “LD” input, in this case, the countdown starts again from the “PV” value. If the current counter value is less than or equal to zero, the “Q” parameter is set to signal state “TRUE”.

CTD types:

• CTD_SINT / CTD_USINT: the calculation goes with the variable types SINT, USINT
• CTD_INT / CTD_UINT: the calculation goes with the variable types INT, UINT
• CTD_DINT / CTD_UDINT: the calculation goes with the variable types DINT, UDINT
• CTD_LINT / CTD_ULINT: the calculation goes with the variable types LINT, ULINT (only on S7-1500 PLC)

>> Back to LamaPLC main menu (SCL commands)

The function that counts up- and downwards.

The CTUD counts up the positive edges of the “CU” input, and counts down with “CD” input. As soon as it reaches the value of “PV” with the calculation, the output “QU” changes to “TRUE”. The function continues to count. The function can be restarted with the “R” input. The downcounts function can be restarted with “LD” input, in this case, the countdown starts again from the “PV” value. If the current counter value is less than or equal to zero, the “QD” parameter is set to signal state “TRUE”.

CTUD types:

• CTUD_SINT / CTUD_USINT: the calculation goes with the variable types SINT, USINT
• CTUD_INT / CTUD_UINT: the calculation goes with the variable types INT, UINT
• CTUD_DINT / CTUD_UDINT: the calculation goes with the variable types DINT, UDINT
• CTUD_LINT / CTUD_ULINT: the calculation goes with the variable types LINT, ULINT (only on S7-1500 PLC)

>> Back to LamaPLC main menu (SCL commands)

IEC timers (TP, TON, TOF) should definitely be called embedded from the FBs, the description of which can be found here: Call FBs

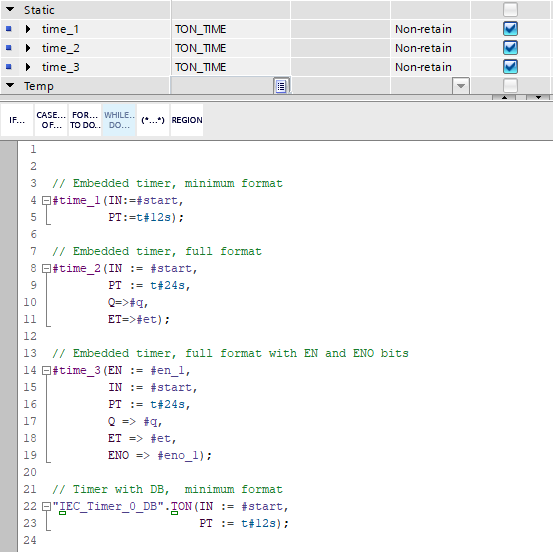

In the case of embedding, the functions must be called from the “static” block of the calling FB (just type “TON” for the “data type”):

	In the case of embedding, the functions must be called from the “static” block of the calling FB (just type “TON” for the “data type”. FBs must be called in the program in much the same way, of course the DB call must be omitted.
	The image shows the data of the embedded FBs in the IDB of the calling FB. The great advantage of this method is that the program is easy to import / export / copy, as you only need one FB definition.

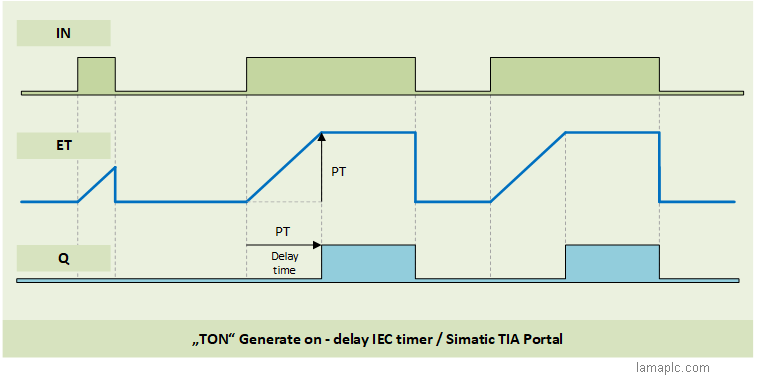

The TON “switch-on delay” function. It monitors the positive edge of the binary signal at the “IN” input. If the signal persists for a specified “PT” time, it outputs “Q”. The timer is most commonly used to delay signals, for example: - in the case of a field signal, we want to make sure that not only one interference signal is received - in case of level signals we want to get a certain signal (many level signals “wobble”)

>> Back to LamaPLC main menu (SCL commands)

// author OB121 / Sandor Vamos
// ob121.com; 2022.04.13.
// TON example: sec impuls
//
// More information:
// https://www.ob121.com/doku.php?id=de:s7:scl_reference_timers
//
// FB "static" variables:
// secTakt: TON_TIME
// q, secChange: BOOL
// secCount: INT
// FB "temp" variables:
// tempInt: INT
// tempBool: BOOL

// TON, as sec impuls generator
#secTakt(IN:=NOT(#q),
         PT:=t#1s);

// For example, the "Q" parameter can be called
// directly when calling "secTakt",
// OR it can be referred to as:
#q := #secTakt.Q;

// when the time has elapsed, the block will be called:
// - secChange changes its status every second
// - secCount increases every second, in the range 0..9
IF #q THEN
    #secChange := NOT (#secChange);
    #secCount := #secCount + 1;
    IF #secCount > 9 THEN
        #secCount := 0;
    END_IF;
END_IF;

// monitor
#tempInt := #secCount;
#tempBool := #secChange;

>> Back to LamaPLC main menu (SCL commands)

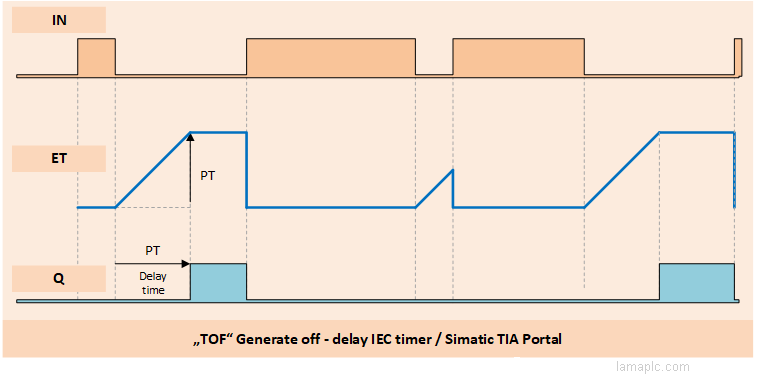

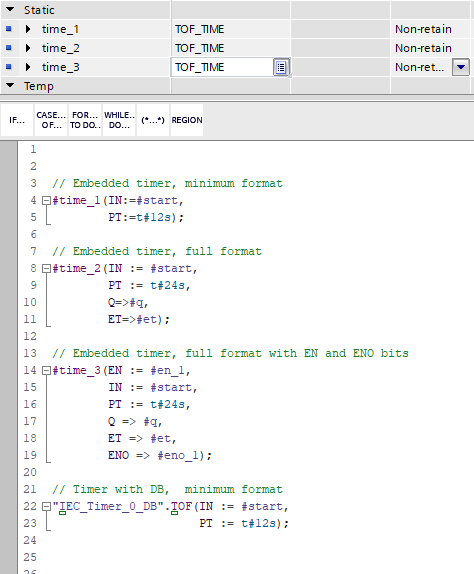

The TOF “switch-off delay” function. It monitors the positive edge of the binary signal at the “IN” input. If the signal persists for a specified “PT” time, it outputs “Q”. The timer is most commonly used to delay signals, for example: - in the case of a field signal, we want to make sure that not only one interference signal is received - in case of level signals we want to get a certain signal (many level signals “wobble”)

>> Back to LamaPLC main menu (SCL commands)

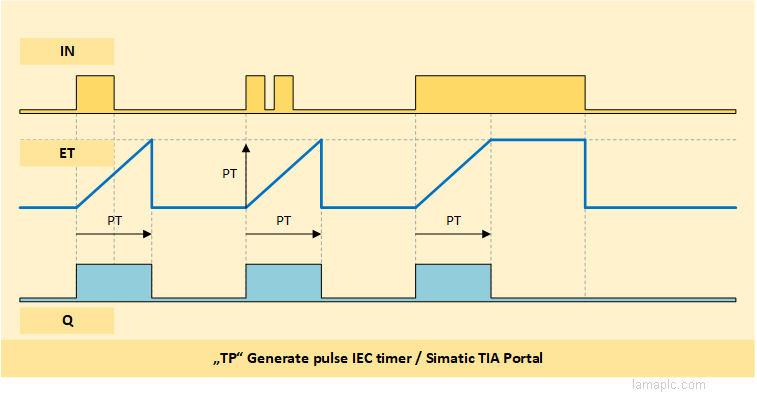

The TP “pulse generator” function. It monitors the positive edge of the binary signal at the “IN” input, and generates pulses in effect equal “PT” length from this. It is commonly used to extend very short-lived signals because, for example, the cycle time of a WinCC HMI is typically 1 sec. If the signals are “extended” for 2 seconds, the HMI can also process them.

>> Back to LamaPLC main menu (SCL commands)

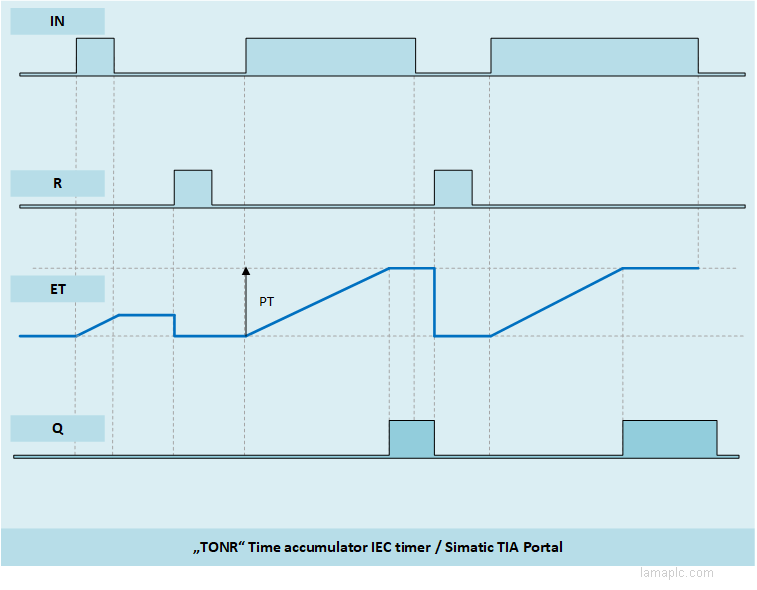

The TONR “time accumulator” function. It practically collects the times, and if the input signal “IN” has already existed for the right amount of time, it indicates a result “Q”. The timer function can be reset with the reset input “R” to set null the amount of time collected.
