Addressing methods are mostly tied to variable types, not areas, so the following procedures apply to both DB and Tag variables.

Direct addressing in Simatic is typically symbolic addressing, meaning in the simplest case we correspond two variables of the same type to each other:

fromReal : Real;
fromInt : Int;
toReal : Real;
toInt : Int;
…

#toInt := #fromInt;
#toReal := #fromReal;

If the types do not match, conversion will help us:

#toInt := REAL_TO_INT(IN := #fromReal);

Direct addressing is also applicable to STRUCTURE and ARRAY types, as long as both sides have identical structures.

Another approach is direct addressing, which involves referring to sub-elements of a variable. Although this method applies to a limited range of variables, it is a simple form of assignment. While it isn't as straightforward as the S7-Classic AT command that many programmers prefer, it is at least available:

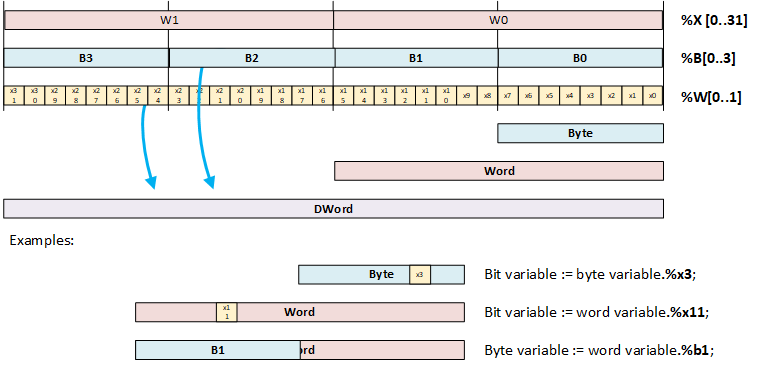

Slice addressing involves dividing a memory region, such as a byte or word, into smaller segments like booleans. With S7-1200 and S7-1500, you can target specific parts within declared variables (only by byte, word, dword) and access segments of 1, 8, 16, or 32 bits.

The following example is a SPLIT function that splits a WORD Input variable into bits:

// FC Input : inWord (Word)
// FC output: 16 variable bit0..bit15 (Bool)
// splitting
#bit0 := #inWord.%X0;
#bit1 := #inWord.%X1;
#bit2 := #inWord.%X2;
#bit3 := #inWord.%X3;
#bit4 := #inWord.%X4;
#bit5 := #inWord.%X5;
#bit6 := #inWord.%X6;
#bit7 := #inWord.%X7;
#bit8 := #inWord.%X8;
#bit9 := #inWord.%X9;
#bitA := #inWord.%X10;
#bitB := #inWord.%X11;
#bitC := #inWord.%X12;
#bitD := #inWord.%X13;
#bitE := #inWord.%X14;
#bitF := #inWord.%X15;

In the TIA Portal, there are two ways to perform indirect addressing or pointer referencing: the ANY and the VARIANT. However, it is important to note that the S7-1200 series PLCs do not support the ANY method. Using a pointer essentially involves moving a data block of a specific size to a memory area of the same size. This operation ignores the structure and variables within the data area, making it a quick and useful method when applied carefully. However, careless use of this tool can be very risky.

A key issue is that it doesn't handle the variables within the data being pointed to; for example, when searching for errors with xref, these procedures are not visible to the compiler, which can lead to difficult-to-detect errors caused by improper pointer use.

Structure of the ANY Pointer (10 Bytes):
