LamaPLC: XY_MOS: MOS FET Drive Module 400W Support PWM Controller
High-performance MOSFET field-effect switch driver module with PWM control for electronic switching applications. Uses an imported dual MOSFET transistor with high power and parallel active output, offering lower resistance, higher current capacity, and firm performance. Supports perfect PWM signals: The PWM controller can accept signals with frequencies ranging from 0 to 20 kHz. This motor control module accommodates a wide input voltage range (DC 5-36 V) and can be used in various high-power devices. Applications include motors, light bulbs, LED light strips, micro water pumps, and more.
| Specification | Data |
|---|---|
| Signal input range | 3,3 V .. 20 V |
| Power supply | 5 V .. 36 V |
| PWM signal frequency | 0 .. 20 kHz |
| Continuous current at room temperature | 15 A |
| Maximum current | 30 A |
| Maximum power | 400 W |
| Power supply | 4.3 .. 5.2 V |
| Operating temperature | -40 .. 85 °C |
Application
Duct fans are often used in building automation systems, such as for ventilation and heating. These fans are typically suitable for PWM control because they have a speed controller.

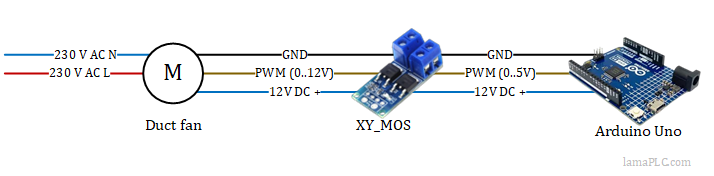

In these setups, the PWM supply voltage comes from the motor (shown by the blue-black wire in the diagram below), while the PWM signal is received on the brown wire. The Arduino operates at a 0-5 V signal level; in this case, the XY_MOS signal converter can be used to match the two signal levels. Pay attention to this aspect:
- Do not connect more than 5V to the Arduino PIN output, as it can cause damage.
- For the Arduino PWM output, select a pin that is suitable for controlling PWM signals (~ indicates these pins).
